MICROPROCESSOR

What is a Microprocessor?

The microprocessor is the central unit of a computer system that performs arithmetic and logic operations, which generally include adding, subtracting, transferring numbers from one area to another, and comparing two numbers. It's often known simply as a processor, a central processing unit, or as a logic chip. It's essentially the engine or the brain of the computer that goes into motion when the computer is switched on. It's a programmable, multipurpose device that incorporates the functions of a CPU (central processing unit) on a single IC (integrated circuit).


How Does a Microprocessor Work?

A microprocessor accepts binary data as input, processes that data, and then provides output based on the instructions stored in the memory. The data is processed using the microprocessor's ALU (arithmetical and logical unit), control unit, and a register array. The register array processes the data via a number of registers that act as temporary fast access memory locations. The flow of instructions and data through the system is managed by the control unit.


List of Terms Used in a Microprocessor

Here is a list of some of the frequently used terms in a microprocessor −

  • Instruction Set − It is the set of instructions that the microprocessor can understand.

  • Bandwidth − It is the number of bits processed in a single instruction.

  • Clock Speed − It determines the number of operations per second the processor can perform. It is expressed in megahertz (MHz) or gigahertz (GHz).It is also known as Clock Rate.

  • Word Length − It depends upon the width of internal data bus, registers, ALU, etc. An 8-bit microprocessor can process 8-bit data at a time. The word length ranges from 4 bits to 64 bits depending upon the type of the microcomputer.

  • Data Types − The microprocessor has multiple data type formats like binary, BCD, ASCII, signed and unsigned numbers.


Features of a Microprocessor

Here is a list of some of the most prominent features of any microprocessor −

  • Cost-effective − The microprocessor chips are available at low prices and results its low cost.

  • Size − The microprocessor is of small size chip, hence is portable.

  • Low Power Consumption − Microprocessors are manufactured by using metaloxide semiconductor technology, which has low power consumption.

  • Versatility − The microprocessors are versatile as we can use the same chip in a number of applications by configuring the software program.

  • Reliability − The failure rate of an IC in microprocessors is very low, hence it is reliable.

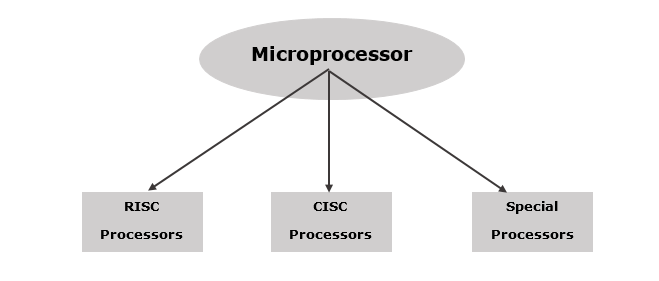

A microprocessor can be classified into three categories:


RISC Processor

RISC stands for Reduced Instruction Set Computer. It is designed to reduce the execution time by simplifying the instruction set of the computer. Using RISC processors, each instruction requires only one clock cycle to execute results in uniform execution time. This reduces the efficiency as there are more lines of code, hence more RAM is needed to store the instructions. The compiler also has to work more to convert high-level language instructions into machine code.

Some of the RISC processors are −

  • Power PC: 601, 604, 615, 620

  • DEC Alpha: 210642, 211066, 21068, 21164

  • MIPS: TS (R10000) RISC Processor

  • PA-RISC: HP 7100LC


Architecture of RISC

RISC microprocessor architecture uses highly-optimized set of instructions. It is used in portable devices like Apple iPod due to its power efficiency.




Characteristics of RISC

The major characteristics of a RISC processor are as follows −

  • It consists of simple instructions.

  • It supports various data-type formats.

  • It utilizes simple addressing modes and fixed length instructions for pipelining.

  • It supports register to use in any context.

  • One cycle execution time.

  • “LOAD” and “STORE” instructions are used to access the memory location.

  • It consists of larger number of registers.

  • It consists of less number of transistors.


CISC Processor

CISC stands for Complex Instruction Set Computer. It is designed to minimize the number of instructions per program, ignoring the number of cycles per instruction. The emphasis is on building complex instructions directly into the hardware.

The compiler has to do very little work to translate a high-level language into assembly level language/machine code because the length of the code is relatively short, so very little RAM is required to store the instructions.

Some of the CISC Processors are −

  • IBM 370/168

  • VAX 11/780

  • Intel 80486


Architecture of CISC

Its architecture is designed to decrease the memory cost because more storage is needed in larger programs resulting in higher memory cost. To resolve this, the number of instructions per program can be reduced by embedding the number of operations in a single instruction.




Characteristics of CISC

  • Variety of addressing modes.

  • Larger number of instructions.

  • Variable length of instruction formats.

  • Several cycles may be required to execute one instruction.

  • Instruction-decoding logic is complex.

  • One instruction is required to support multiple addressing modes.


Special Processors

These are the processors which are designed for some special purposes. Few of the special processors are briefly discussed −

1. Coprocessor

A coprocessor is a specially designed microprocessor, which can handle its particular function many times faster than the ordinary microprocessor.

For example − Math Coprocessor.

Some Intel math-coprocessors are −

  • 8087-used with 8086

  • 80287-used with 80286

  • 80387-used with 80386

2. Input/Output Processor

It is a specially designed microprocessor having a local memory of its own, which is used to control I/O devices with minimum CPU involvement.

For example

  • DMA (direct Memory Access) controller

  • Keyboard/mouse controller

  • Graphic display controller

  • SCSI port controller

3. Transputer (Transistor Computer)

A transputer is a specially designed microprocessor with its own local memory and having links to connect one transputer to another transputer for inter-processor communications. It was first designed in 1980 by Inmos and is targeted to the utilization of VLSI technology.

A transputer can be used as a single processor system or can be connected to external links, which reduces the construction cost and increases the performance.

For example − 16-bit T212, 32-bit T425, the floating point (T800, T805 & T9000) processors.


4. DSP (Digital Signal Processor)

This processor is specially designed to process the analog signals into a digital form. This is done by sampling the voltage level at regular time intervals and converting the voltage at that instant into a digital form. This process is performed by a circuit called an analogue to digital converter, A to D converter or ADC.

A DSP contains the following components −

  • Program Memory − It stores the programs that DSP will use to process data.

  • Data Memory − It stores the information to be processed.

  • Compute Engine − It performs the mathematical processing, accessing the program from the program memory and the data from the data memory.

  • Input/Output − It connects to the outside world.

Its applications are −

  • Sound and music synthesis

  • Audio and video compression

  • Video signal processing

  • 2D and 3d graphics acceleration.

For example − Texas Instrument’s TMS 320 series, e.g., TMS 320C40, TMS320C50.


Click on the link below to get the detailed information for the microprocessor:

8085 microprocessor-https://www.thetechplatform.com/post/8085-microprocessor

8086 microprocessor-https://www.thetechplatform.com/post/8086-microprocessor
