# Heap Sort Algorithm

#### In this tutorial, you will learn how heap sort algorithm works. Also, you will find working examples of heap sort in C, C++, Java and Python.

Heap Sort is a popular and efficient sorting algorithm in computer programming. Learning how to write the heap sort algorithm requires knowledge of two types of data structures - arrays and trees.

The initial set of numbers that we want to sort is stored in an array e.g. [10, 3, 76, 34, 23, 32] and after sorting, we get a sorted array [3,10,23,32,34,76]

Heap sort works by visualizing the elements of the array as a special kind of complete binary tree called a heap.

As a prerequisite, you must know about a complete binary tree and heap data structure.

## Relationship between Array Indexes and Tree Elements

A complete binary tree has an interesting property that we can use to find the children and parents of any node.

If the index of any element in the array is i, the element in the index 2i+1 will become the left child and element in 2i+2 index will become the right child. Also, the parent of any element at index i is given by the lower bound of (i-1)/2.

Relationship between array and heap indices

Let's test it out,

```Left child of 1 (index 0)
= element in (2*0+1) index
= element in 1 index
= 12

Right child of 1
= element in (2*0+2)
index = element in 2 index
= 9

Similarly,
Left child of 12 (index 1)
= element in (2*1+1) index
= element in 3 index
= 5

Right child of 12
= element in (2*1+2) index
= element in 4 index
= 6```

Let us also confirm that the rules hold for finding parent of any node

```Parent of 9 (position 2)
= (2-1)/2
= Â½
= 0.5 ~ 0 index
= 1

Parent of 12 (position 1)
= (1-1)/2
= 0 index
= 1```

Understanding this mapping of array indexes to tree positions is critical to understanding how the Heap Data Structure works and how it is used to implement Heap Sort.

## What is Heap Data Structure?

Heap is a special tree-based data structure. A binary tree is said to follow a heap data structure if

• it is a complete binary tree

• All nodes in the tree follow the property that they are greater than their children i.e. the largest element is at the root and both its children and smaller than the root and so on. Such a heap is called a max-heap. If instead, all nodes are smaller than their children, it is called a min-heap

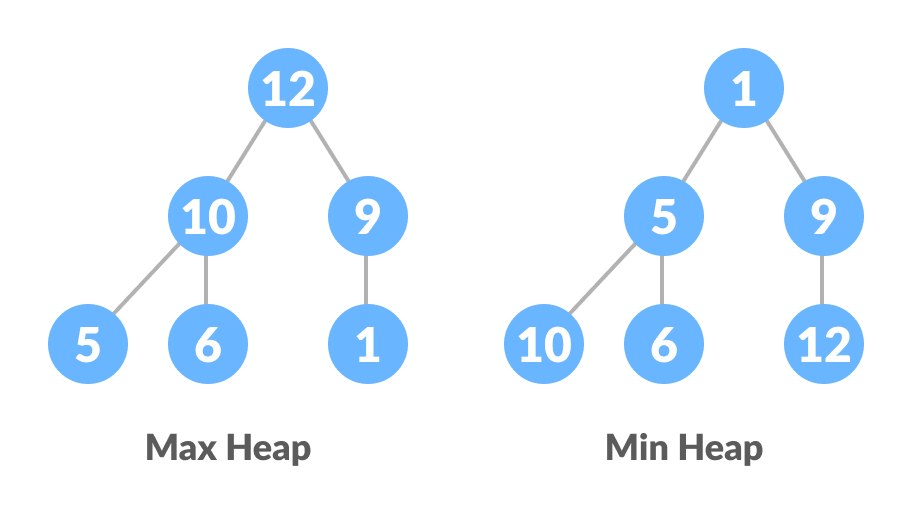

The following example diagram shows Max-Heap and Min-Heap.

Max Heap and Min Heap

## How to "heapify" a tree

Starting from a complete binary tree, we can modify it to become a Max-Heap by running a function called heapify on all the non-leaf elements of the heap.

Since heapify uses recursion, it can be difficult to grasp. So let's first think about how you would heapify a tree with just three elements.

```heapify(array)
Root = array[0]
Largest = largest( array[0] , array [2*0 + 1]. array[2*0+2])
if(Root != Largest)
Swap(Root, Largest)```

Heapify base cases

The example above shows two scenarios - one in which the root is the largest element and we don't need to do anything. And another in which the root had a larger element as a child and we needed to swap to maintain max-heap property.

If you're worked with recursive algorithms before, you've probably identified that this must be the base case.

Now let's think of another scenario in which there is more than one level.

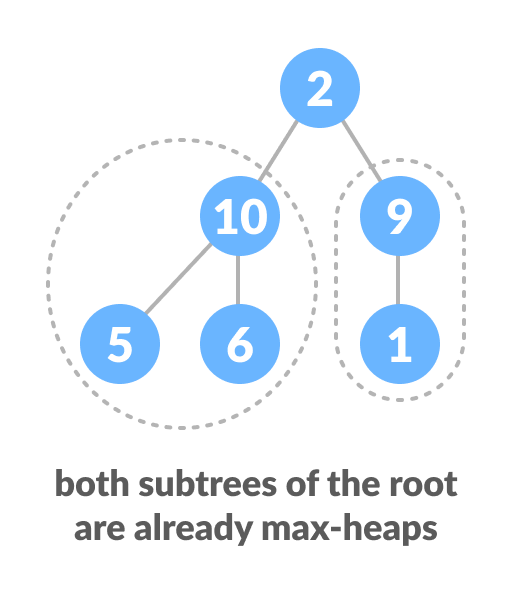

How to heapify root element when its subtrees are already max heaps

The top element isn't a max-heap but all the sub-trees are max-heaps.

To maintain the max-heap property for the entire tree, we will have to keep pushing 2 downwards until it reaches its correct position.

How to heapify root element when its subtrees are max-heaps

Thus, to maintain the max-heap property in a tree where both sub-trees are max-heaps, we need to run heapify on the root element repeatedly until it is larger than its children or it becomes a leaf node. We can combine both these conditions in one heapify function as

```void heapify(int arr[], int n, int i) {
// Find largest among root, left child and right child

int largest = i;
int left = 2 * i + 1;
int right = 2 * i + 2;
if (left < n && arr[left] > arr[largest])
largest = left;
if (right < n && arr[right] > arr[largest])
largest = right;

// Swap and continue heapifying if root is not largest
if (largest != i) {
swap(&arr[i], &arr[largest]);
heapify(arr, n, largest);
}
}```

This function works for both the base case and for a tree of any size. We can thus move the root element to the correct position to maintain the max-heap status for any tree size as long as the sub-trees are max-heaps.

## Build max-heap

To build a max-heap from any tree, we can thus start heapifying each sub-tree from the bottom up and end up with a max-heap after the function is applied to all the elements including the root element.

In the case of a complete tree, the first index of a non-leaf node is given by n/2 - 1. All other nodes after that are leaf-nodes and thus don't need to be heapified.

So, we can build a maximum heap as

```// Build heap (rearrange array)
for (int i = n / 2 - 1; i >= 0; i--)
heapify(arr, n, i);```

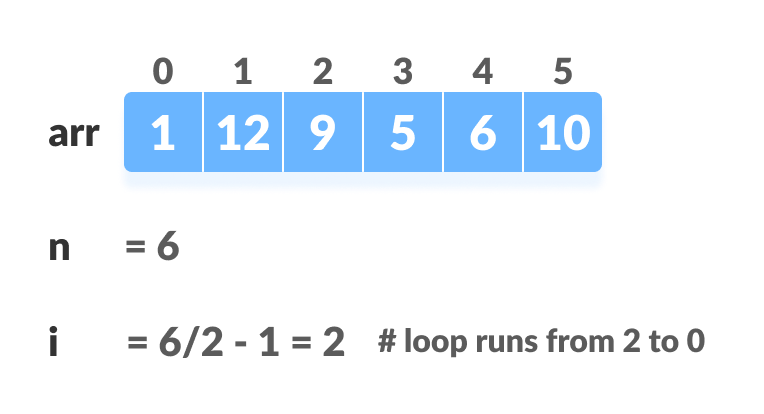

Create array and calculate i

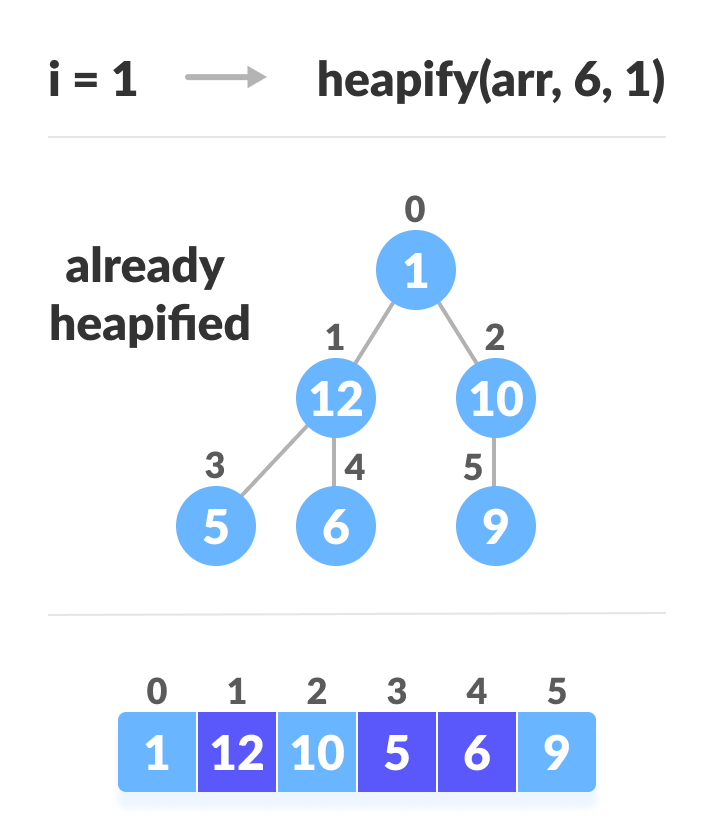

Steps to build max heap for heap sort

Steps to build max heap for heap sort

Steps to build max heap for heap sort

As shown in the above diagram, we start by heapifying the lowest smallest trees and gradually move up until we reach the root element.

If you've understood everything till here, congratulations, you are on your way to mastering the Heap sort.

## How Heap Sort Works?

1. Since the tree satisfies Max-Heap property, then the largest item is stored at the root node.

2. Swap: Remove the root element and put at the end of the array (nth position) Put the last item of the tree (heap) at the vacant place.

3. Remove: Reduce the size of the heap by 1.

4. Heapify: Heapify the root element again so that we have the highest element at root.

5. The process is repeated until all the items of the list are sorted.

Swap, Remove, and Heapify

The code below shows the operation.

``` // Heap sort
for (int i = n - 1; i >= 0; i--) {
swap(&arr[0], &arr[i]);
// Heapify root element to get highest element at root again heapify(arr, i, 0);
}```

## Python, Java and C/C++ Examples

### 1. Python

```# Heap Sort in python
def heapify(arr, n, i):

# Find largest among root and children
largest = i
l = 2 * i + 1
r = 2 * i + 2 if l < n and arr[i] < arr[l]:
largest = l
if r < n and arr[largest] < arr[r]:
largest = r

# If root is not largest, swap with largest and continue heapifying
if largest != i:
arr[i], arr[largest] = arr[largest], arr[i]
heapify(arr, n, largest)
def heapSort(arr):
n = len(arr)

# Build max heap
for i in range(n//2, -1, -1):
heapify(arr, n, i)
for i in range(n-1, 0, -1):

# Swap
arr[i], arr[0] = arr[0], arr[i]

# Heapify root element
heapify(arr, i, 0)
arr = [1, 12, 9, 5, 6, 10]
heapSort(arr)
n = len(arr)
print("Sorted array is")
for i in range(n):
print("%d " % arr[i], end='')   ```

### 2. JAVA

```// Heap Sort in Java

public class HeapSort {

public void sort(int arr[]) {
int n = arr.length;

// Build max heap
for (int i = n / 2 - 1; i >= 0; i--) {
heapify(arr, n, i);
}

// Heap sort
for (int i = n - 1; i >= 0; i--) {
int temp = arr[0];
arr[0] = arr[i];
arr[i] = temp;

// Heapify root element
heapify(arr, i, 0);
}
}

void heapify(int arr[], int n, int i) {
// Find largest among root, left child and right child
int largest = i;
int l = 2 * i + 1;
int r = 2 * i + 2;

if (l < n && arr[l] > arr[largest])
largest = l;

if (r < n && arr[r] > arr[largest])
largest = r;

// Swap and continue heapifying if root is not largest
if (largest != i) {
int swap = arr[i];
arr[i] = arr[largest];
arr[largest] = swap;

heapify(arr, n, largest);
}
}

// Function to print an array
static void printArray(int arr[]) {
int n = arr.length;
for (int i = 0; i < n; ++i)
System.out.print(arr[i] + " ");
System.out.println();
}

// Driver code
public static void main(String args[]) {
int arr[] = { 1, 12, 9, 5, 6, 10 };

HeapSort hs = new HeapSort();
hs.sort(arr);

System.out.println("Sorted array is");
printArray(arr);
}
}```

### 3. C

``` #include <stdio.h>

// Function to swap the the position of two elements
void swap(int *a, int *b) {
int temp = *a;
*a = *b;
*b = temp;
}

void heapify(int arr[], int n, int i) {
// Find largest among root, left child and right child
int largest = i;
int left = 2 * i + 1;
int right = 2 * i + 2;

if (left < n && arr[left] > arr[largest])
largest = left;

if (right < n && arr[right] > arr[largest])
largest = right;

// Swap and continue heapifying if root is not largest
if (largest != i) {
swap(&arr[i], &arr[largest]);
heapify(arr, n, largest);
}
}

// Main function to do heap sort
void heapSort(int arr[], int n) {
// Build max heap
for (int i = n / 2 - 1; i >= 0; i--)
heapify(arr, n, i);

// Heap sort
for (int i = n - 1; i >= 0; i--) {
swap(&arr[0], &arr[i]);

// Heapify root element to get highest element at root again
heapify(arr, i, 0);
}
}

// Print an array
void printArray(int arr[], int n) {
for (int i = 0; i < n; ++i)
printf("%d ", arr[i]);
printf("\n");
}

// Driver code
int main() {
int arr[] = {1, 12, 9, 5, 6, 10};
int n = sizeof(arr) / sizeof(arr[0]);

heapSort(arr, n);

printf("Sorted array is \n");
printArray(arr, n);
}```

### 4. C++

```#include <iostream>
using namespace std;

void heapify(int arr[], int n, int i) {
// Find largest among root, left child and right child
int largest = i;
int left = 2 * i + 1;
int right = 2 * i + 2;

if (left < n && arr[left] > arr[largest])
largest = left;

if (right < n && arr[right] > arr[largest])
largest = right;

// Swap and continue heapifying if root is not largest
if (largest != i) {
swap(arr[i], arr[largest]);
heapify(arr, n, largest);
}
}

// main function to do heap sort
void heapSort(int arr[], int n) {
// Build max heap
for (int i = n / 2 - 1; i >= 0; i--)
heapify(arr, n, i);

// Heap sort
for (int i = n - 1; i >= 0; i--) {
swap(arr[0], arr[i]);

// Heapify root element to get highest element at root again
heapify(arr, i, 0);
}
}

// Print an array
void printArray(int arr[], int n) {
for (int i = 0; i < n; ++i)
cout << arr[i] << " ";
cout << "\n";
}

// Driver code
int main() {
int arr[] = {1, 12, 9, 5, 6, 10};
int n = sizeof(arr) / sizeof(arr[0]);
heapSort(arr, n);

cout << "Sorted array is \n";
printArray(arr, n);
}```

## Heap Sort Complexity

Heap Sort has O(nlog n) time complexities for all the cases ( best case, average case, and worst case). Let us understand the reason why. The height of a complete binary tree containing n elements is log n As we have seen earlier, to fully heapify an element whose subtrees are already max-heaps, we need to keep comparing the element with its left and right children and pushing it downwards until it reaches a point where both its children are smaller than it.

In the worst case scenario, we will need to move an element from the root to the leaf node making a multiple of log(n) comparisons and swaps.

During the build_max_heap stage, we do that for n/2 elements so the worst case complexity of the build_heap step is n/2*log n ~ nlog n.

During the sorting step, we exchange the root element with the last element and heapify the root element. For each element, this again takes log n worst time because we might have to bring the element all the way from the root to the leaf. Since we repeat this n times, the heap_sort step is also nlog n.

Also since the build_max_heap and heap_sort steps are executed one after another, the algorithmic complexity is not multiplied and it remains in the order of nlog n.

Also it performs sorting in O(1) space complexity. Compared with Quick Sort, it has a better worst case ( O(nlog n) ). Quick Sort has complexity O(n^2) for worst case. But in other cases, Quick Sort is fast.

Introsort is an alternative to heapsort that combines quicksort and heapsort to retain advantages of both: worst case speed of heapsort and average speed of quicksort.

## Heap Sort Applications

Systems concerned with security and embedded systems such as Linux Kernel use Heap Sort because of the O(n log n) upper bound on Heapsort's running time and constant O(1) upper bound on its auxiliary storage.

Although Heap Sort has O(n log n) time complexity even for the worst case, it doesn't have more applications ( compared to other sorting algorithms like Quick Sort, Merge Sort ). However, its underlying data structure, heap, can be efficiently used if we want to extract the smallest (or largest) from the list of items without the overhead of keeping the remaining items in the sorted order. For e.g Priority Queues.
