# How to do Deep Learning on Graphs with Graph Convolutional Networks

Machine learning on graphs is a difficult task due to the highly complex, but also informative graph structure. This post is the second in a series on how to do deep learning on graphs with Graph Convolutional Networks (GCNs), a powerful type of neural network designed to work directly on graphs and leverage their structural information.

In the previous post, I gave a high-level introduction to GCNs and showed how a nodes representation is updated based on its neighbors representation. In this post, we first gain a deeper understanding of the aggregation performed during the rather simple graph convolutions discussed in the previous post. Then we move on to a recently published graph convolutional propagation rule and I show how to implement and use it for semi-supervised learning on a community prediction task in Zachary’s Karate Club, a small social network. As shown below, the GCN is able to learn latent feature representations for each node that separates the two communities into two reasonably cohesive and separated clusters despite using only one training example for each community.

*Latent node representations of Zachary’s Karate Club in a GCN at each training epoch.*

## A Brief Recap

In __my previous post__ on GCNs, we a saw a simple mathematical framework for expressing propagation in GCNs. In short, given an *N × F⁰* feature matrix * X* and a matrix representation of the graph structure, e.g., the

*N*×

*N*adjacency matrix

*of*

**A***G*, each hidden layer in the GCN can be expressed as

*where*

**Hⁱ**= f(**H**ⁱ⁻¹,**A**))*and*

**H**⁰ =**X***f*is a propagation rule. Each layer

*corresponds to an*

**Hⁱ***N*×

*F*feature matrix where each row is a feature representation of a node.

**ⁱ**We saw propagation rules of the form

*f(*and**Hⁱ**,**A**) = σ(**AHⁱWⁱ**),*f(*where**Hⁱ**,**A**) = σ(**D**⁻¹**ÂHⁱWⁱ**)**Â = A**+**I**is the identity matrix, and**I**is the inverse degree matrix of**D**⁻¹**Â**

These rules compute *the feature representation of a node as an aggregate of the feature representations of its neighbors*** **before it is transformed by applying the weights * Wⁱ *and activation function

*σ*. We can make the aggregation and transformation steps more explicit by expressing propagation rules 1 and 2 above as

*f(*where

**Hⁱ**,**A**) = transform(aggregate(**A,Hⁱ**),**Wⁱ**)*transform(*and

**M**,**Wⁱ**)**=**σ(**MWⁱ**)*aggregate(*for rule 1 and

**A,Hⁱ**) =**AHⁱ***aggregate(*for rule 2.

**A,Hⁱ**) =**D**⁻¹**Â Hⁱ**As we discussed in the previous post, aggregation in rule 1 represents a node as a sum of its neighbors feature representations which has two significant shortcomings:

the aggregated representation of a node does not include its own features, and

nodes with large degrees will have large values in their feature representation while nodes with small degrees will have small values, which can lead to issues with exploding gradients and make it harder to train using algorithms such as stochastic gradient descent which are sensitive to feature scaling.

To fix these two issues, rule 2 first enforces self loops by adding the identity matrix to ** A **and aggregate on using the transformed adjacency matrix

*Â = A**+*

**. Next, the feature representations are normalized by multiplication with the inverse degree matrix**

*I*

*D**⁻¹*, turning the aggregate into a mean where the scale of the aggregated feature representation is invariant to node degree.

In the following I will refer to rule 1 as *the sum rule* and rule 2 as t*he mean rule*.

### Spectral Graph Convolutions

A recent paper by Kipf and Welling proposes fast approximate spectral graph convolutions using a spectral propagation rule [1]:

Compared to the sum and mean rules discussed in the previous post, the spectral rule differs only in the choice of aggregate function. Although it is somewhat similar to the mean rule in that it normalizes the aggregate using the degree matrix ** D** raised to a negative power, the normalization is asymmetric. Let’s try it out and see what it does.

### Aggregation as a Weighted Sum

We can understand the aggregation functions I’ve presented thus far as weighted sums where each aggregation rule differ only in their choice of weights. We’ll first see how we can express the relatively simple sum and mean rules as weighted sums before moving on to the spectral rule.

**The Sum Rule**
To see how the aggregate feature representation of the *i*th node is computed using the sum rule, we see how the *i*th row in the aggregate is computed.

*The Sum Rule as a Weighted Sum*

As shown above in Equation 1a, we can compute the aggregate feature representation of the *i*th node as a vector-matrix product. We can formulate this vector-matrix product as a simple weighted sum, as shown in Equation 1b, where we sum over each of the *N* rows in * X*.

The contribution of the *j*th node in the aggregate in Equation 1b is determined by the value of the *j*th column of the *i*th row of * A*. Since

*is an adjacency matrix, this value is 1 if the*

**A***j*th node is a neighbor of the

*i*th node, and is otherwise 0. Thus, Equation 1b corresponds to summing up the feature representations of the neighbors of the

*i*th node. This confirms the informal observations from the previous post.

In conclusion, the contribution of each neighbor depends solely on the neighborhood defined by the adjacency matrix ** A**.

**The Mean Rule**
To see how the mean rule aggregates node representations, we again see how the *i*th row in the aggregate is computed, now using the mean rule. For simplicity, we only consider the mean rule on the “raw“ adjacency matrix without addition between ** A** and the identity matrix

**which simply corresponds to adding self-loops to the graph.**

*I**The Mean Rule as a Weighted Sum*

As seen in the equations above, the derivation is now slightly longer. In Equation 2a we now first transform the adjacency matrix ** A** by multiplying it with the inverse of degree matrix

**. This computation is made more explicit in Equation 2b. The inverse degree matrix is a diagonal matrix where the values along the diagonal are inverse node degrees s.t. the value at position (**

*D**i, i)*is the inverse degree of the

*i*th node. Thus, we can remove one of the summation signs yielding Equation 2c. Equation 2c can be further reduced yielding Equations 2d and 2e.

As shown by Equation 2e, we now again sum over each of the *N* rows in the adjacency matrix * A*. As mentioned during the discussion of the sum rule, this corresponds to summing over each the

*i*th node’s neighbors. However, the weights in the weighted sum in Equation 2e are now guaranteed to sum to 1 by with the degree of the

*i*th node. Thus, Equation 2e corresponds to a mean over the feature representations of the neighbors of the

*i*th node.

Whereas the sum rule depends solely on the neighborhood defined by the adjacency matrix ** A**, the mean rule also depends on node degrees.

**The Spectral Rule**
We now have a useful framework in place to analyse the spectral rule. Let’s see where it takes us!

*The Spectral Rule as a Weighted Sum*

As with the mean rule, we transform the adjacency matrix A using the degree matrix D. However, as shown in Equation 3a, we raise the degree matrix to the power of -0.5 and multiply it on each side of ** A**. This operation can be broken down as shown in Equation 3b. Recall again, that degree matrices (and powers thereof) are diagonal. We can therefore simplify Equation 3b further, until we reach the expression in Equation 3d.

Equation 3e shows something quite interesting. When computing the aggregate feature representation of the ith node, we not only take into consideration the degree of the ith node, but also the degree of the jth node.

Similar to the mean rule, the spectral rule normalizes the aggregate s.t. the aggregate feature representation remains roughly on the same scale as the input features. However, the spectral rule weighs neighbor in the weighted sum higher if they have a low-degree and lower if they have a high-degree. This may be useful when low-degree neighbors provide more useful information than high-degree neighbors.

### Semi-Supervised Classification with GCNs

In addition to the spectral rule, Kipf and Welling demonstrate how GCNs can be used for semi-supervised classification [1]. In semi-supervised learning we wish to make use of both labeled and unlabeled examples. So far we have implicitly assumed that the entire graph is available, i.e., that we are in a transductive setting. In other words, we know all the nodes, but not all the node labels.

In all the rules we’ve seen, we aggregate over node neighborhoods, and thus nodes that share neighbors tend to have similar feature representations. This property is very useful if the graph exhibits homophily, i.e., that connected nodes tend to be similar (e.g. have the same label). Homophily occurs in many real networks, and particularly social networks exhibit strong homophily.

As we saw in the previous post, even *a randomly initialized GCN* can achieve good separation between the feature representations of nodes in a homophilic graph just by using the graph structure. We can take this a step further by training the GCN on the labeled nodes, effectively propagating the node label information to unlabelled nodes by updating weight matrices that are shared across all nodes. This can be done as follows [1]:

Perform forward propagation through the GCN.

Apply the sigmoid function row-wise on the last layer in the GCN.

Compute the cross entropy loss on known node labels.

Backpropagate the loss and update the weight matrices W in each layer.

### Community Prediction in Zachary’s Karate Club

Let’s see how the spectral rule propagates node label information to unlabeled nodes using semi-supervised learning. As in the previous post, we will use Zachary’s Karate Club as an example.

*If you want to follow along, you can find the data set along with a Jupyter notebook containing the code to train and evaluate the GCN *__here__*.*

### Zachary’s Karate Club

Briefly, Zachary’s Karate Club is a small social network where a conflict arises between the administrator and instructor in a karate club. The task is to predict which side of the conflict each member of the karate club chooses. The graph representation of the network can be seen below. Each node represents a member of the karate club and a link between members indicate that they interact outside the club. The Administrator and Instructor marked with A and I, respectively.

*Zachary’s Karate Club*

### Spectral Graph Convolutions in MXNet

I implement the spectral rule in MXNet, an easy-to-use and efficient deep learning framework. The implementation is as follows:

```
class SpectralRule(HybridBlock):
def __init__(self,
A, in_units, out_units,
activation, **kwargs):
super().__init__(**kwargs)
I = nd.eye(*A.shape)
A_hat = A.copy() + I
D = nd.sum(A_hat, axis=0)
D_inv = D**-0.5
D_inv = nd.diag(D_inv)
A_hat = D_inv * A_hat * D_inv
self.in_units, self.out_units = in_units, out_units
with self.name_scope():
self.A_hat = self.params.get_constant('A_hat', A_hat)
self.W = self.params.get(
'W', shape=(self.in_units, self.out_units)
)
if activation == 'ident':
self.activation = lambda X: X
else:
self.activation = Activation(activation)
def hybrid_forward(self, F, X, A_hat, W):
aggregate = F.dot(A_hat, X)
propagate = self.activation(
F.dot(aggregate, W))
return propagate
```

__init__ takes as input an adjacency matrix A along with the input and output dimensionality of each node’s feature representation from the graph convolutional layer;in_units, and out_units, respectively. Self-loops are added to the adjacency matrix A through addition with the identity matrix I, calculate the degree matrix D, and transform the adjacency matrix A to A_hat as specified by the spectral rule. This transformation is not strictly necessary, but is more computationally efficient since the transformation would otherwise be performed during each forward pass of the layer.

Finally, in the with clause in __init__, we store two model parameters — A_hat is stored as a constant and the weight matrix W is stored as a trainable parameter.

hybrid_forward is where the magic happens. In the forward pass we execute this method with the following inputs: X, the output of the previous layer, and the parameters A_hat and W that we defined in the constructor __init__.

### Building the Graph Convolutional Network

Now that we have an implementation of the spectral rule, we can stack such layers on top of each other . We use a two-layer architecture similar to the one in the previous post, where the first hidden layer has 4 units and the second hidden layer has 2 units. This architecture makes it easy visualize the resulting 2-dimensional embeddings. It differs from the architecture in the previous post in three ways:

We use the spectral rule rather than the mean rule.

We use different activation functions: the tanh activation function is used in the first layer since the probability of dead neurons would otherwise be quite high and the second layer uses the identity function since we use the last layer to classify nodes.

Finally, we add a logistic regression layer on top of the GCN for node classification.

The Python implementation of the above architecture is as follows.

```
def build_model(A, X):
model = HybridSequential()
with model.name_scope():
features = build_features(A, X)
model.add(features)
classifier = LogisticRegressor()
model.add(classifier)
model.initialize(Uniform(1))
return model, features
```

I have separated the feature learning part of the network that contains the graph convolutional layers into a features component and the classification part into the classifier component. The separate features component makes it easier to visualise the activations of these layers later. The LogisticRegressoras a classification layer that performs logistic regression by summing over the features of each node provided by the last graph convolutional layer and applying the sigmoid function on this sum.

*You can find the code to construct the features component and the code for the LogisticRegressor in *__the accompanying Jupyter notebook__*.*

### Training the GCN

The code for training the GCN model can be seen below. In brief, I initialize a binary cross entropy loss function, cross_entropy, and an SGD optimizer, trainer to learn the network parameters. Then the model is trained for a specified number of epochs where the loss is calculated for each training example and the error is backpropagated using loss.backward(). trainer.step is then invoked to update the model parameters. After each epoch, the feature representation constructed by the GCN layer is stored in the feature_representations list which we shall inspect shortly.

```
def train(model, features, X, X_train, y_train, epochs):
cross_entropy = SigmoidBinaryCrossEntropyLoss(from_sigmoid=True)
trainer = Trainer(
model.collect_params(), 'sgd',
{'learning_rate': 0.001, 'momentum': 1})
feature_representations = [features(X).asnumpy()]
for e in range(1, epochs + 1):
for i, x in enumerate(X_train):
y = array(y_train)[i]
with autograd.record():
pred = model(X)[x] # Get prediction for sample x
loss = cross_entropy(pred, y)
loss.backward()
trainer.step(1)
feature_representations.append(features(X).asnumpy())
return feature_representations
```

Crucially, only the labels of the instructor and administrator are labeled and the remaining nodes in the network are known, but unlabeled! The GCN can find representations for both labeled and unlabeled nodes during graph convolution and can leverage both sources of information during training to perform semi-supervised learning.

Specifically, semi-supervised learning in takes place in the GCN as it produces latent feature representation of a node by aggregating both the labeled and unlabeled neighbors of the node. During training, we then backpropagate the supervised binary cross entropy loss to update the weights shared across all nodes. However, this loss depends on the latent feature representations of labeled nodes which in turn depends on both labeled and unlabeled nodes. Thus the learning becomes semi-supervised.

### Visualizing the Features

As mentioned above, the feature representations at each epoch are stored which allows us to see how the feature representations changes during training. In the following I consider two input feature representations.

**Representation 1**
In the first representation, we simply use the sparse 34 × 34 __identity matrix__, *I*, as the feature matrix X, i.e., *a one-hot encoding of each node in the graph*. This representation has the advantage that it can be used in any graphs, but results in an input parameter for each node in the network which requires a substantial amount of memory and computional power for training on large networks and may result in overfitting. Thankfully, the karate club network is quite small. The network is trained for 5000 epochs using this representation.

*Classification Errors in the Karate Club using Representation 1*

By collectively classifying all nodes in the network, we get the distribution of errors in the network shown on above. Here, black indicates misclassification. Although a nearly half (41%) of the nodes are misclassified, the nodes that are closely connected to either the administrator or instructor (but not both!) tend to be correctly classified.

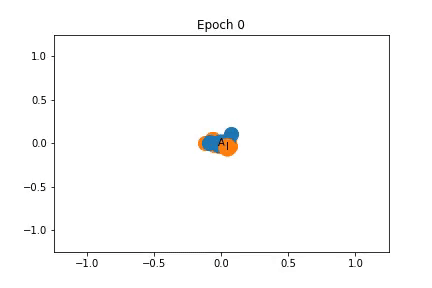

*Changes in Feature Representation during Training using Representation 1*

To the left, I have illustrated how the feature representation changes during training. The nodes are initially closely clustered, but as training progresses the instructor and administrator are pulled apart, dragging some nodes with them.

Although the administrator and instructor are given quite different representations, the nodes they drag with them do not necessarily belong to their community. This is because the graph convolutions embed nodes that share neighbors closely together in the feature space, but two nodes that share neighbors may not be equally connected to the administrator and instructor. In particular, using the identity matrix as the feature matrix results in highly local representations of each node, i.e., nodes that belong to the same area of the graph are likely to be embedded closely together. This makes it difficult for the network to share common knowledge between distant areas in an inductive fashion.

**Representation 2**
We will improve representation 1 by adding two features that are not specific to any node or area of the network, but measures the connectedness to the administrator and instructor. To this end, we compute the shortest path distance from each node in the network to both the administrator and instructor and concatenate these two features to the previous representation.

On might perhaps consider this cheating a little bit, since we inject global information about the location of each node in the graph; information which should (ideally) be captured by the graph convolutional layers in the features component. However, the graph convolutional layers always have a local perspective and has a limited capacity to capture such information. Still, it serves as a useful tool for understanding GCNs.

*Classification Errors in the Karate Club using Representation 1*

As before, we collectively classify all nodes in the network and plot the distribution of errors in the network shown on above. This time, only four nodes are misclassified; a significant improvement over representation 1! Upon closer inspection of the feature matrix, these nodes are either equidistant (in a shortest path sense) to the instructor and administrator or are closer to the administrator but belong in the instructor community. The GCN is trained for 250 epochs using representation 2.

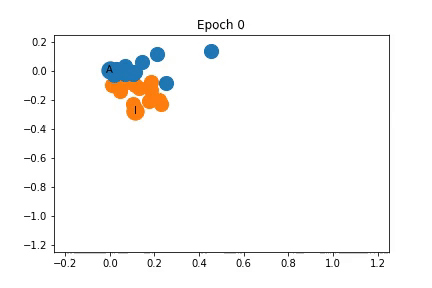

*Changes in Feature Representation during Training using Representation 2*

As shown on the left, the nodes are again clustered quite closely together initially, but are somewhat separated into communities before training even begins! As training progresses the distance between the communities increases.

## What’s Next?

In this post, I have given an in-depth explanation on how aggregation in GCNs is performed and shown how it can be expressed as a weighted sum, using the mean, sum, and spectral rules as examples. My sincere hope is that you will find this framework useful to consider which weights you might want during aggregation in your own graph convolutional network.

I have also shown how to implement and train a GCN in MXNet to perform semi-supervised classification on graphs using spectral graph convolutions with Zachary’s Karate Club as a simple example network. We saw how just using two labeled nodes, it was still possible for the GCN to achieve a high degree of separation between the two network communities in the representation space.

Although there is much more to learn about graph convolutional networks which I hope to have the time to share with you in the future, this is (for now) the final post in the series. If you are interested in further reading, I would like to conclude with the following papers which I have found quite interesting:

In this paper, Hamilton et al., propose several new aggregate functions that, e.g., uses max/mean pooling or multi-layer perceptrons. In addition, they also propose a simple method to do mini-batch training for GCNs, greatly improving training speed.**Inductive Representation Learning on Large Graphs**A drawback of the mini-batch method proposed by Hamilton et al., is that the number of nodes in a batch grows exponentially in the number of aggregates performed due to their recursive. Chen et. al, propose their FastGCN method which addresses this shortcoming by performing batched training of graph convolutional layers independently.**FastGCN: Fast Learning with Graph Convolutional Networks via Importance Sampling**Where FastGCN addresses the problems of training recursive graph convolutional networks, N-GCN challenges the premise that GCNs need to be recursive at all! Abu-El-Haija et al. instead propose a flat architecture with multiple (N) GCNs whose outputs are concatenated together. Each GCN captures the neighborhood at different distances (based on random walk semantics), thus avoiding recursive aggregation. Thanks to**N-GCN: Multi-scale Graph Convolution for Semi-supervised Node Classification**__Binny Mathew__for bringing this to my attention.
