How to create custom SharePoint 2010 Content Type using Visual Studio 2010

In this article we are going to create custom Content Type using visual studio 2010.


Steps Involved:

Creating Empty SharePoint Project:

  • Open Visual Studio 2010.

  • Go to File => New => Project.

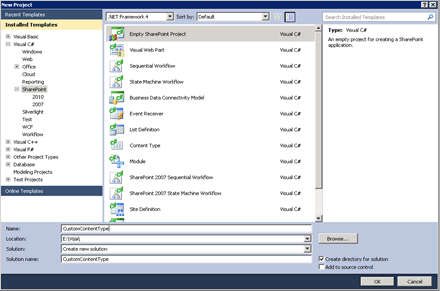

  • Select 2010 from the installed templates SharePoint and choose Empty SharePoint Project.

  • Name it as CustomContentType.


  • Click Add.

  • Enter the SharePoint server farm URL.

  • Select 'Deploy it as a Farm Solution".

  • Click Finish.


Adding Content Type:

  • Right click the Solution Explorer and select Add a new item.

  • Select Content Type from the installed templates SharePoint and name it as CustomContentType.


  • Choose the base content type from which our custom content type should inherit, I have chosen "Item" as a base content type.


  • Double click the Elements.xml file.


  • Replace the code with the below one. <?xml version="1.0" encoding="utf-8"?> <Elements xmlns="http://schemas.microsoft.com/sharepoint/"> <!-- Parent ContentType: Item (0x01) --> <ContentType ID="0x0100eb248db87d3f40efa20cdfae86fe0b50" Name="Custom Content Type" Group="Custom Content Types" Description="My Content Type" Inherits="TRUE" Version="0"> <FieldRefs> </FieldRefs> </ContentType> </Elements>In the above code, we are adding a Custom Content Type  with the group name as "Custom Content Types".


  • Build the solution.

  • Deploy the solution.


Testing:

  • Go to the SharePoint site.

  • Go to Site Actions => Site Settings =>Galleries =>Site Content Types.

  • You will see the Custom Content Type that we have created in the group "Custom Content Types".
