Calculation In SharePoint 2013 And Office 365 Using Nintex Workflows

Welcome to an article on how to do calculation in SharePoint 2013 and Office 365 using Nintex Workflows. This article will display the action “Do Calculation” so that all my developer friends don’t have to spend much time and effort while using this function in their projects.


Let’s see the implementation of this functionality.

  • Create a list, Dev Testing.

  • Click on the List tab on the Top ribbon and click Nintex Workflows.


  • You will see the following screen, to create a new workflow.

  • Click on “Create new workflow”.


  • You will come to the design phase of the Nintex workflows.

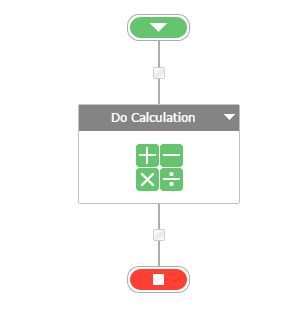

  • Add the action, “Do Calculation” either by right click on the workflow or by dragging and dropping from the left toolbox.


  • Now let’s configure it.

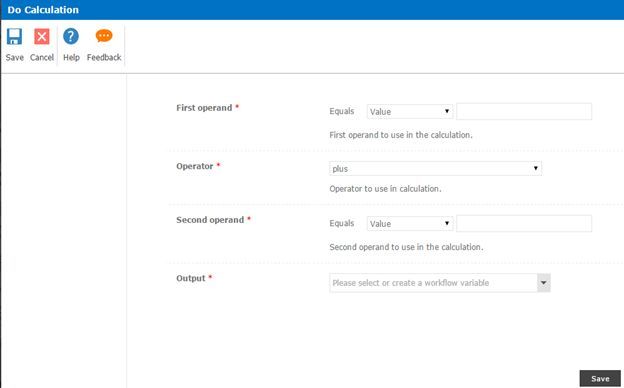

  • When you double click on the action the following screen opens up.


Configure:

1. First Operand: Select a variable you want to do calculations on.

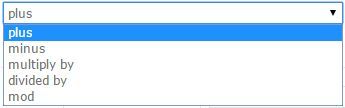

2. Operator: Under Operator you can do Addition, Subtraction, Multiplication, Division and Mod.


3. Second Operand: Select a variable you want to do calculations on.

4. Output: Select a variable to store the result after the calculation is done.

  • Now we have configured our workflow, let’s go and publish it to use it.

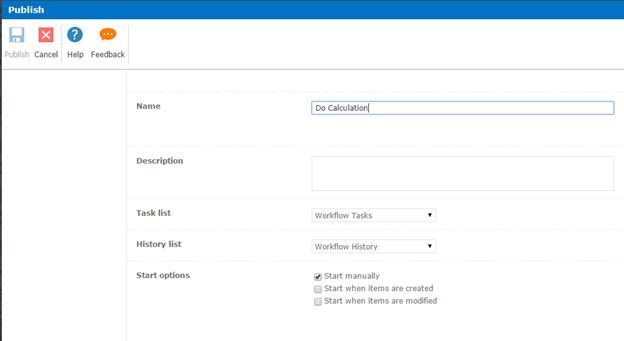

  • Click on Publish on the left corner of the ribbon of Nintex Designer.
