KnockoutJS in SharePoint 2013

Introduction

KnockoutJS is a JavaScript library for binding data and generating HTML at run time. It uses the Model-View-ViewModel pattern. To learn more about KnockoutJS please refer to http://learn.knockoutjs.com/#/?tutorial=intro.

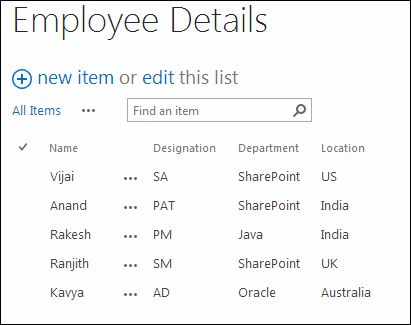

In this article you will see how to use KnockoutJS in a SharePoint 2013 page. I have created a custom list named “Employee Details” that contains the following fields.


We will create a page and populate the preceding list items in a table using KnockoutJS and the JavaScript object model. We need to refer to the following JavaScript files:

  1. ko.sp-1.0.min.js

  2. knockout-3.1.0.js

  3. jquery-1.8.3.min.js


Create a page

  • Navigate to the SharePoint site.

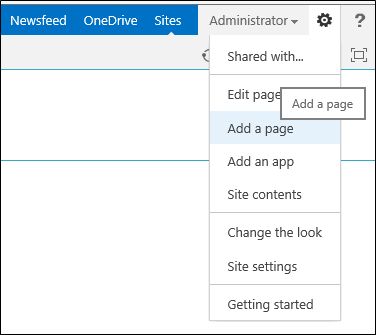

  • Click on Settings and then click on Add a page.

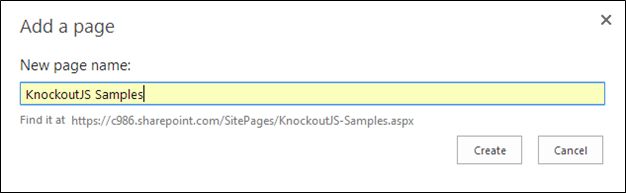

  • Enter the page name and then click on the Create button.


  • The page is created successfully.

Add Script Editor Webpart

  • Navigate to the newly created page.

  • Click on the Page tab and then click on the Edit button in the ribbon interface.

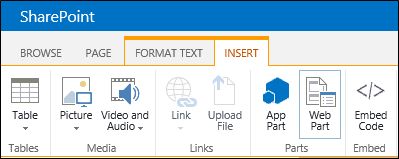

  • Click on the Insert tab and then click on Web Part.


  • Select the Script Editor web part and then click on the Add button.

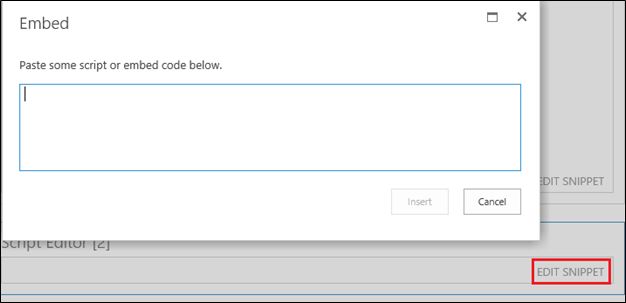

  • Edit the web part and then click on Edit Snippet.


  • Copy and paste the following code snippet and then click on the Insert button.

<script src="https://c986.sharepoint.com/SiteAssets/jquery-1.8.3.min.js"></script>

<script src="https://c986.sharepoint.com/SiteAssets/knockout-3.1.0.js"></script>

<script src="https://c986.sharepoint.com/SiteAssets/ko.sp-1.0.min.js"></script>

<script>

ExecuteOrDelayUntilScriptLoaded(MainFunction, "sp.js");

var completeEmployeeList = null;

// Class used for saving the field values.

function EmployeeList(name, designation, department, location)

{

var self = this;

self. Name = name;

self.Designation = designation;

self.Department = department;

self.Location = location;

}

//  View Model - JavaScript that defines the data and behavior of your UI

function EmployeeListViewModel()

{

var self = this;

 // observableArray equivalent of a regular array,

self.Employees = ko.observableArray([]);   self.AddEmployees = function (name, designation, department, location)

{

self.Employees.push(new EmployeeList(name, designation, department, location));

}      }

function MainFunction()

{

completeEmployeeList = new EmployeeListViewModel();

// Retrieve the SharePoint list items

retrieveListItems();

// Activates knockout.js

ko.applyBindings(completeEmployeeList);

 }

function retrieveListItems()

{

var clientContext = new SP.ClientContext.get_current();

var oList = clientContext.get_web().get_lists().getByTitle('Employee Details');

var camlQuery = new SP.CamlQuery();

camlQuery.set_viewXml("<View><RowLimit>10</RowLimit></View>");   this.collListItem = oList.getItems(camlQuery);

clientContext.load(collListItem);

clientContext.executeQueryAsync(Function.createDelegate(this, this.onQuerySucceeded),

Function.createDelegate(this, this.onQueryFailed));

}

function onQuerySucceeded(sender, args)

{

var listItemInfo = '';

var listItemEnumerator = collListItem.getEnumerator();

while (listItemEnumerator.moveNext())

{

var currentItem = listItemEnumerator.get_current();

completeEmployeeList.AddEmployees(currentItem.get_item("Title"), currentItem.get_item("Designation"),

currentItem.get_item("Department"), currentItem.get_item("Location"));

}      }

function onQueryFailed(sender, args)

{

alert('Request failed. ' + args.get_message() + '\n' + args.get_stackTrace());

}

</script> <!-- view - HTML markup that defines the appearance of your UI -->

<div id="divEmployeeList">

<h2>Employee Details</h2>

<br />

<table id="tblEmployeeList" border="1">

<thead>

<tr>

<th>Name</th>

<th>Designation</th>

<th>Department</th>

<th>Location</th>

</tr>

</thead> <!-- Iterating through every list item using foreach of KO -->

<tbody data-bind="foreach: Employees">

<tr>

<td data-bind="text: Name"></td>

<td data-bind="text: Designation"></td>

<td data-bind="text: Department"></td>

<td data-bind="text: Location"></td>

</tr>

</tbody>

</table>

</div>

  • Click on the Ok button in the web part properties window.

  • Click on the Save button in the ribbon interface.

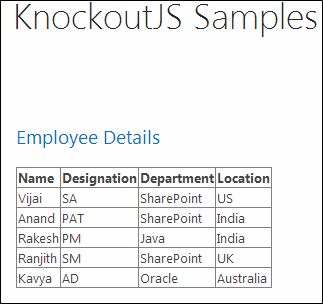

  • You are able to see the following HTML table populated with all the list items.


Summary

Thus in this article you saw how to use KnockoutJS in a SharePoint 2013 page.
